GE AKTA pH/C-900 Monitor

Our Price: $4,260.00

Sale Price: $3,495.00

Money Saved: $765.00

Condition: Fully Recertified and Tested to Perform at Manufacturer Specifications
Warranty: 180-Day Full Parts and Labor (Click for Info)
Typically Ships Within: 1 to 3 Business Days

Request a Formal Quote

Quantity in Stock:1

Product Code: GE-PHC900

Qty:

Description

Recertification Protocol

Technical Specification Sheet

GE AKTA pH/C-900 Monitor

The GE AKTA pH/C-900 Monitor is a combined unit for accurate, on-line monitoring of pH and conductivity in a wide range of liquid chromatography applications. Monitor pH/C-900 precisely measures the elution conditions of chromatographic separations, either as a component of ÄKTAdesign systems or as a standalone instrument. It displays pH, conductivity, and temperature. Since temperature can influence both pH and conductivity, the monitor compensates for temperature variations of these readings. Self-diagnostics ensure continual reliability and reproducibility. Both the pH and the conductivity/temperature flow cells feature low cell volume and high linearity for accurate measurements.

PH Electrode Not Included.

All of our equipment is fully tested to perform at factory specifications before being shipped.

INCLUDED:
The GE AKTA pH/C-900 Monitor includes:

> Conductivity Sensor
> Power Cord
> Full 180 Day Parts and Labor Warranty

GE AKTA pH/C-900 Monitor Specifications

Operating pressure max.	50 bar (5 MPa) (725 psi)
Conductivity	1 µS/cm-999.9 mS/cm
Operating Temperature	4°C-40°C
Relative humidity	20%-95% (non condensing)
Wetted Part	No
pH Stability Long Term	2-12
Dimensions (W x D x H)	260 x 370 x 100 mm
Weight	8.5
Material	Glass Perfluororubber (FFKM) Polyetheretherketone (PEEK) Polytetrafluoroethylene (PTFE) Titanium alloy (Ti alloy) Chlorotrifluoroethylene (CTFE)
Accuracy	The greater of ± 2% of full scale or ± 10 µS/cm in the range 1 µS/cm-300 mS/cm ± 0.1 pH unit, temperature compensated Max. 0.1 pH units within 0–10 ml/min (pH measurement)
Baseline noise	± 0.5% of full scale calibrated range
Drift	Max. 0.02 pH/h (measured at pH 4.0) ±0.5 °C per 10 h 0.1 pH unit deviation/10 h
Cell Constant	50 ± 20 cm-1
Response Time	Max. 10 s (0–95% of step) (pH measurements) Max. 3 s (0–95% of step) (Conductivity measurement)

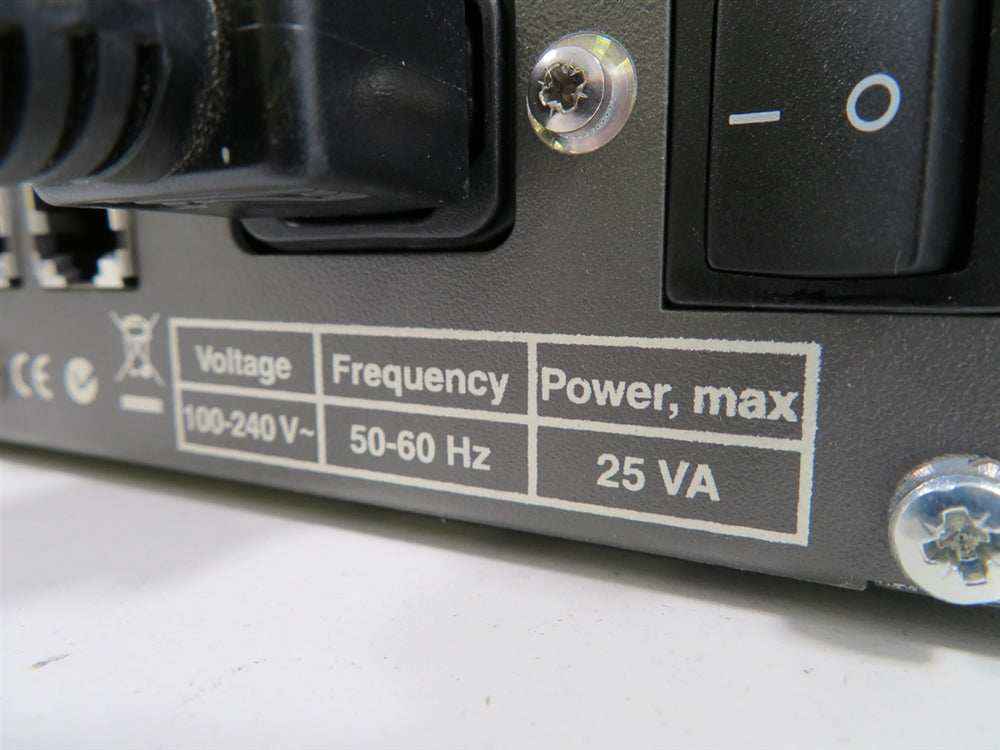

Voltage	100-120/220-240 VAC
Protection class	IP 20 (Housing) IP 44 (Flow cell)
