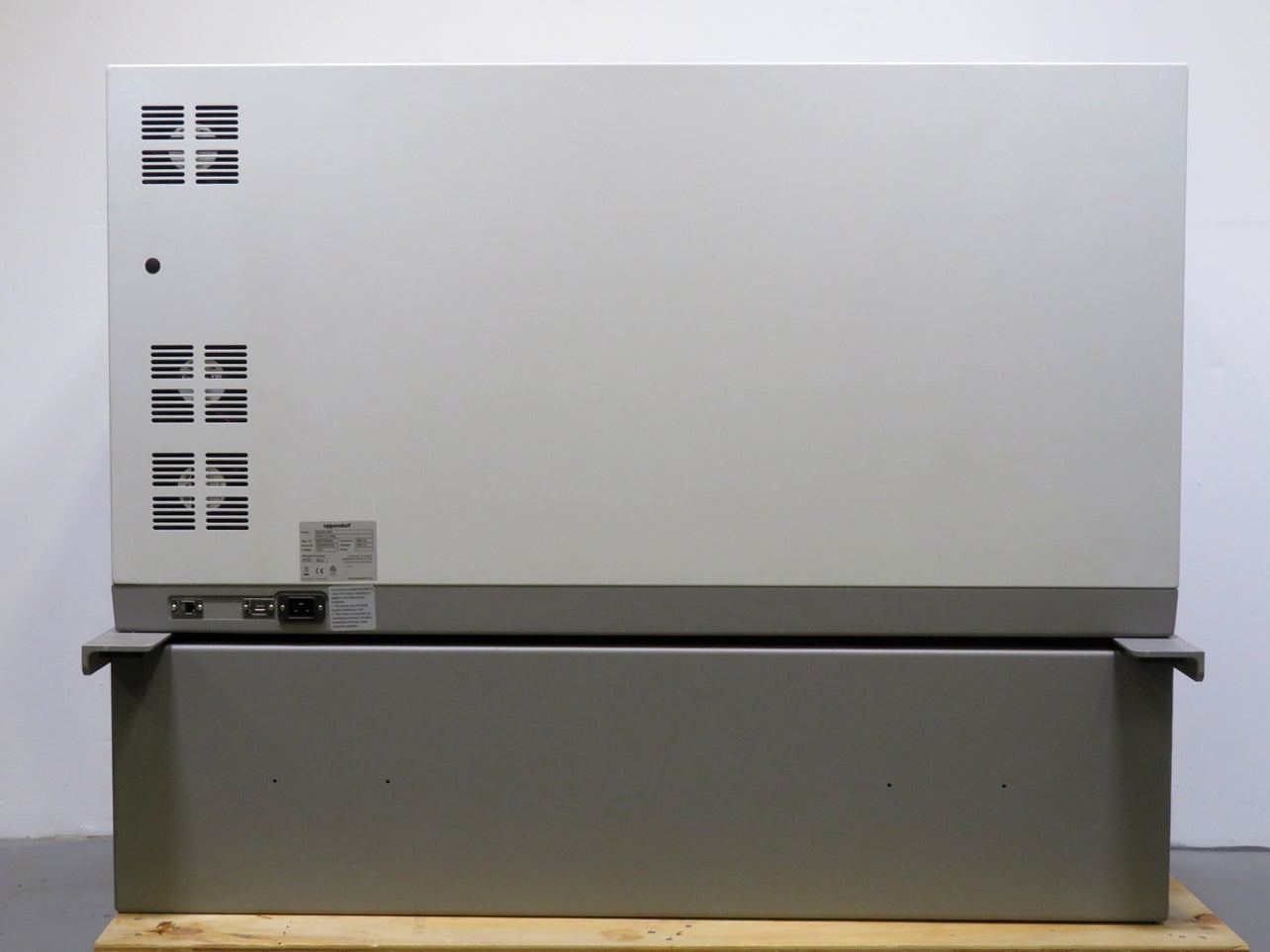

Eppendorf Innova S44i Refrigerated Incubator Shaker

The Eppendorf Innova S44i Refrigerated Incubator Shaker is an exceptionally engineered, high-capacity, temperature-controlled shaker designed for robust and continuous laboratory use. It features a variable speed range from 20 to 400 RPM and an extensive temperature range from Ambient -20°C to 80°C, with a minimum setting of 4°C, making it highly adaptable for diverse experimental conditions. The shaker's stackable configuration allows for a significant increase in capacity without expanding its footprint, ideal for labs with limited space. Equipped with the innovative X-Drive system, the Innova S44i is capable of handling high loads at high speeds with remarkable stability, even when units are stacked. This system includes a precision-engineered counterbalance that adjusts to accommodate unbalanced loads, ensuring vibration-free and smooth operation. The optional photosynthetic LED light bank extends the shaker's versatility by providing uniform lighting that is programmable across a broad intensity range, essential for photosensitive cultures.

User interaction with the Innova S44i is streamlined through the VisioNize touch interface, which features a multi-touch capacitive display for easy monitoring and management of operation settings. This interface supports onboard monitoring, multi-user management, and straightforward data export via USB or network integration through an ethernet connection. The interface also allows for multistep or cyclic programming of temperature or speed rampings, with unlimited storage for custom programs. The sleek design of the Innova S44i includes a space-saving slide-up door that offers unobstructed access to samples, coupled with a slide-out platform mechanism that enables convenient one-handed operation. Engineered for durability and continuous operation, the shaker’s patented five-shaft X-Drive supports weight efficiently and reduces operational stress, thereby extending the unit's lifespan. The touchscreen also facilitates quick access to vital information and operational statuses, enhancing lab workflow efficiency. With these advanced features, the Eppendorf Innova S44i Refrigerated Incubator Shaker stands out as a superior solution for researchers requiring reliable, high-throughput, and flexible shaking environments.

This incubator shaker will be fully tested to perform at factory specifications before being shipped.

Eppendorf Innova S44i Refrigerated Incubator Shaker Specifications

Speed Range	20 to 400 RPM (20 to 300 RPM dual-stacked, 20 to 250 RPM triple-stacked)
Speed Control Accuracy	± 0.5 RPM
Speed Control Increments	± 1 RPM
Temperature Range	Ambient -20°C to 80°C (minimum 4°C)
Temperature Uniformity	± 0.25°C at 37°C and 150 RPM
Temperature Accuracy	± 0.1°C at 37°C, ± 0.5°C over entire range
Timer	0.01 to 95.59 hours or continuous
Orbit	1 in. (2.54 cm)
Maximum Load	100 lb. (45.5 kg)
Drive Mechanism	Eppendorf X-Drive
Motor Type	Solid state, DC brushless motor
Number of Programs/Steps	Unlimited
Interfaces	USB 2.0, Ethernet 100 MBit/s for VisioNize Lab Suite
Platform Size (W x D)	30 x 24 in. (76.2 x 62 cm)
Chamber Dimensions (W x D x H)	35.3 x 28.3 x 22.6 in. (89.6 x 71.9 x 57.5 cm)
Overall Dimensions (W x D x H)	46.5 x 34.2 x 24.8 in. (118.2 x 86.9 x 63 cm)
Weight	415 lb. (188.2 kg)
Electrical Requirements	120V, 50/60Hz, 1800W
