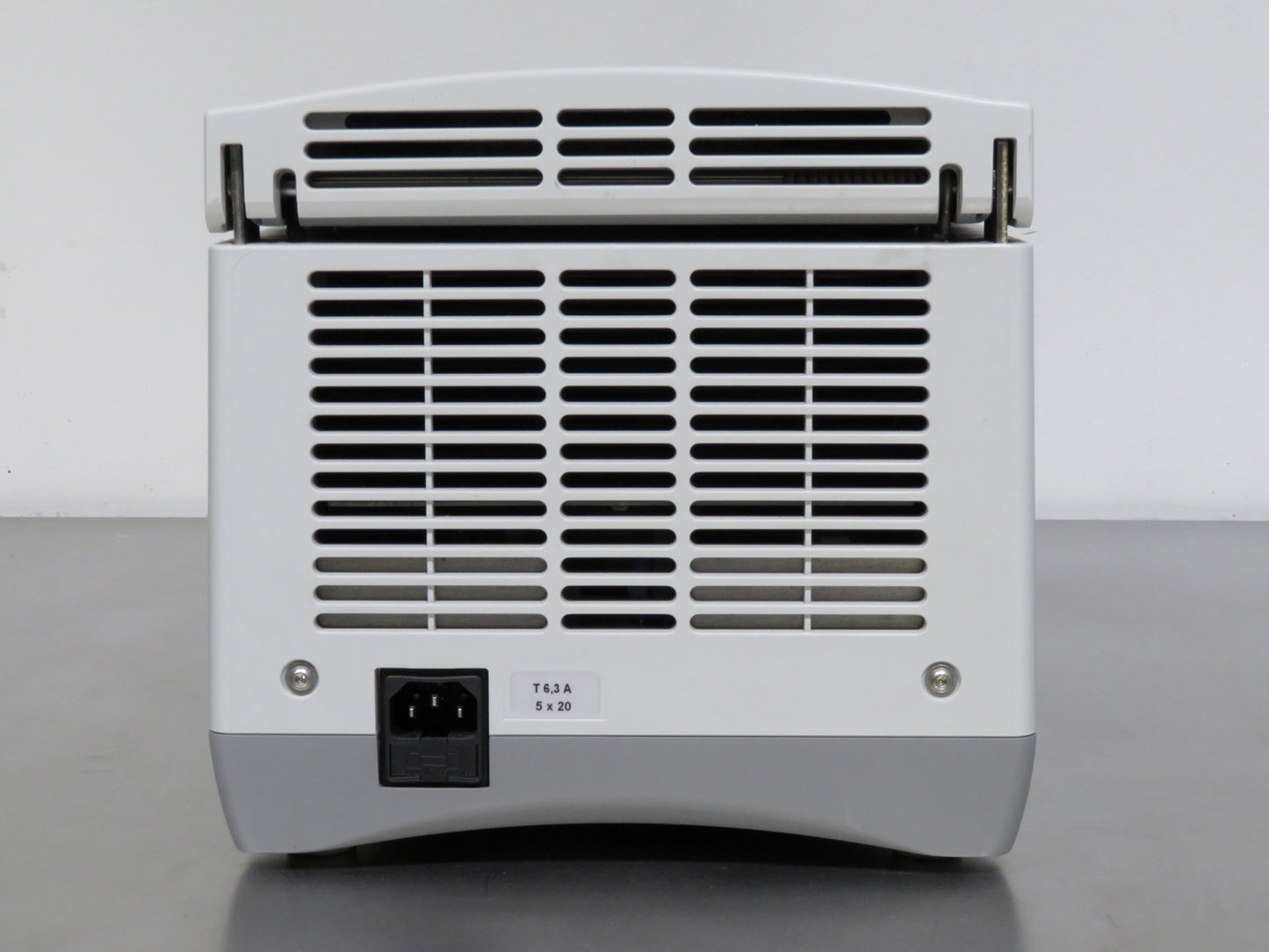

Eppendorf 5424 Centrifuge w/ Digital Display
The Eppendorf 5424 Centrifuge w/ Digital Display combines efficiency, quiet operation, and advanced features to enhance any lab's workflow. Capable of speeds ranging from 100 to 15,000 RPM and a maximum RCF of 21,130 x g, this centrifuge caters to diverse laboratory needs with its 24 x 1.5/2.0 ml capacity. It includes precise speed increments and a timer that ranges from 30 seconds up to 9:59 hours, or continuous operation for extensive runs. The design emphasizes silence, reducing operational noise significantly, which, along with the option to mute the end-of-run alarm, minimizes lab disturbance. Its durability is ensured with a metal epoxy-coated chamber that's easy to clean, complemented by a two-point lid-lock mechanism for secure operation. Additional features like the SOFT-brake system protect delicate samples during deceleration, and the "SHORT-spin" option allows for quick spins at desired speeds. The centrifuge's advanced lid-locking mechanism ensures effortless, one-finger operation, and automatic opening post-run to prevent sample warming, further enhancing user convenience and sample integrity. This model's compact footprint makes it an ideal fit for any lab bench, integrating seamlessly into varied lab environments. The included FA-45-24-11 Fixed Angle Rotor reaches a maximum speed of 15,000 RPM and a maximum RCF of 21,130 x g.All of our equipment is in excellent condition and will be fully tested to perform at factory specifications before being shipped.
Please confirm this rotor meets your application needs and request a different rotor, if necessary. Available rotors can be found in our Rotor Compatibility Guide.
The Eppendorf 5424 Centrifuge w/ Digital Display includes:
- > FA-45-24-11 Fixed Angle Rotor w/ Lid
- > NIST Centrifuge Calibration and Preventative Maintenance Report
- > Power Cord
- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
Eppendorf 5424 Centrifuge w/ Digital Display Specifications
|
Maximum Speed
|
15,000 RPM
|
|
Minimum Speed
|
100 RPM
|
|
Maximum RCF
|
21,130 x g
|
|
Speed Increments
|
± 50 RPM / ± 50 x g
|
|
Maximum Capacity
|
24 x 1.5/2.0ml
|
|
Temperature Range
|
N/A
|
|
Timer
|
30 sec. to 9:59 hours, or continuous
|
|
Maximum Kinetic Energy
|
4070 Nm
|
|
Noise Level
|
< 51 dBa
|
|
Dimensions (W x D x H)
|
9.3 x 12.6 x 8.9 in. (23.6 x 32 x 22.7 cm)
|
|
Weight
|
29.5 lb. (13.4 kg)
|
|
Electrical Requirements
|
120V, 50/60Hz, 3.8A, 250W
|
|
Refrigeration
|
No Refrigeration
|
- Door Latch Assembly Checked for Full Function
- Door Hinges are Checked and Lubed as Needed
- Drive Belt is Checked for Rips and Tears and Replaced if Needed
- Rotors and O-rings are Lubed as Needed
- Lamps and Display are Checked and Replaced if Dim
- Line Cord is Checked for Signs of Fray or Damage and Replaced Accordingly
- Internal Circuitry is Checked for Faulty/Shorted Components and Replaced Accordingly
- Confirm the power supply output voltages match specified requirements for stable distribution to all internal components
- Measure and verify voltages at PCB test points to ensure accurate power delivery and circuit integrity
- Confirm rotor compatibility with the centrifuge model and check that rotor detection systems recognize the rotor type
- Inspect the exterior for any cosmetic or structural damage that could affect performance or safety
- Check the door mechanism alignment to ensure secure and smooth opening and closing
- Inspect and replace the gas strut with an OEM part to maintain proper door support and safety
- Examine the rotor chamber bowl for dents or damage and replace as needed to ensure safe operation
- Replace and confirm full functionality of all lid lock switches to maintain secure closure
- Inspect and lubricate the door lock mechanism, applying grease to the lid lock rail for smooth operation
- Test compressor functionality (if applicable) to ensure proper operation and consistent temperature control
- Conduct an 8-12 hour cycle test to validate consistent performance over prolonged use
- Confirm rotor motor stability, check for unusual noise, and assess mechanical integrity during operation
- Inspect the condensation drain and clear any clogs to prevent moisture buildup in the rotor chamber
- Verify RPM accuracy using an NIST-traceable tachometer and perform calibration as necessary
- Check the centrifuge error log to ensure zero recorded issues, confirming system reliability
Technician Inspection and Recertification Checklist: Centrifuges
The Following Checklist Is to Be Performed on All Incoming and Outgoing Pieces of Equipment
| Task |
Completed? |
Remarks? |
| Confirm power supply output voltages match specified requirements |
Completed |
|
| Measure and verify voltages at PCB test points for accuracy |
Completed |
|
| Confirm rotor compatibility and detection for proper identification |
Completed |
|
| Inspect exterior for cosmetic or structural damage |
Completed |
|
| Check door mechanism alignment for secure opening and closing |
Completed |
|
| Inspect and replace gas strut with OEM part as needed |
Completed |
|
| Examine rotor chamber for dents or damage and replace if necessary |
Completed |
|
| Replace and confirm functionality of all lid lock switches |
Completed |
|
| Lubricate door lock mechanism and lid lock rail for smooth operation |
Completed |
|
| Test compressor (if applicable) for proper operation and cooling |
Completed |
|
| Run 8-12 hour cycle test to ensure consistent performance |
Completed |
|
| Check rotor motor for stability, noise, and integrity |
Completed |
|
| Inspect and clear condensation drain to prevent buildup |
Completed |
|
| Verify RPM accuracy with NIST traceable tachometer and calibrate |
Completed |
|
| Check centrifuge error log for zero recorded issues |
Completed |
|
