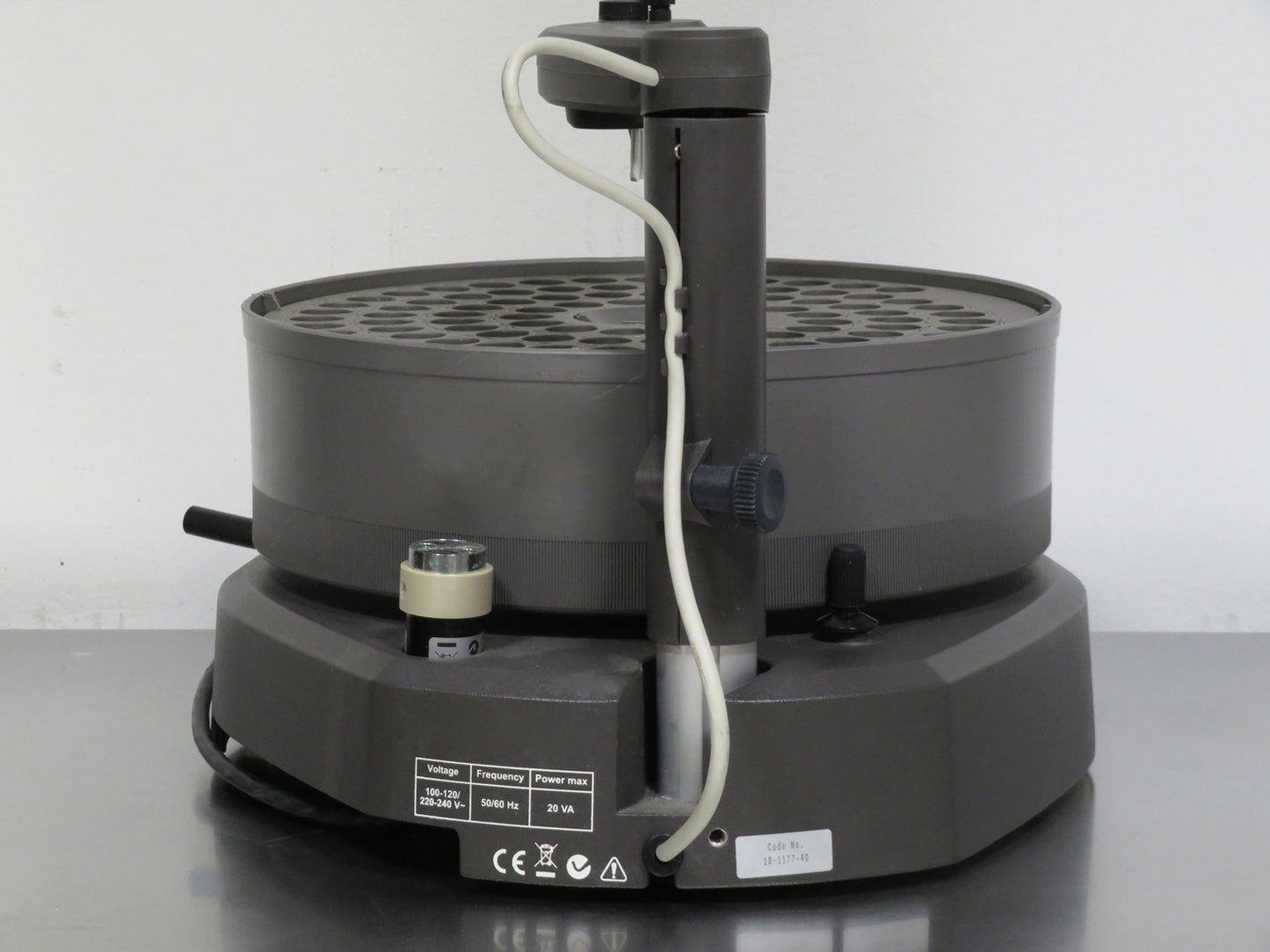

Amersham Biosciences AKTA Frac-920 Fraction Collector

The Amersham Biosciences Frac-920 Fraction Collector has the ability to collect up to 175 fractions in 12 mm tubes, or 95 fractions using 10-18mm tubes, or 40 fractions with 30 mm diameter tubes, depending on which rack you’re using. The Frac-920 can collect fixed volumes, peak fractionation, and timed fractionation all through a few simple pushes of a button. The system is reliable and easy-to-use, allowing quick and concise setup of methods, and was designed with scale-up chromatography in mind. The Frac-920 can be used as a standalone fraction collector or can be connected to an AKTA FPLC system.

All of our equipment is fully tested to perform at factory specifications before being shipped.

Amersham Biosciences AKTA Frac-920 Fraction Collector Specifications

Capacity	95 fractions in 10-18 mm tubes
Depth	400 mm
Flow Rate	< 100 ml/min
Height	250 mm
Operating Temperature	4° to 40°C
pH Stability Long Term	1 – 13
pH Stability Short Term	1 – 14
Program Memory	99 programs
Rack Designation	95 x 10-18 mm (Standard) 175 x 12 mm and 40 x 30 mm (Optional)
Relative Humidity	20 – 95% (none condensing)
Time Mode	0.01 – 9.999 min
Volume Mode	0.1 – 999 ml
Voltage	100 – 240 V
